Product Description
Fully automatic trailer drop falling hammer weight deflectometer testing machine for pavement
Equipment functions
5.1 Equipped with a laptop. Equipped with a "foolproof one click" function, which means automatic measurement work can be completed through an external button switch, computer function keys, or mouse, and can be operated by one person;
5.2 Automatic detection function for deflection and load values;
5.3 Can work continuously in the field, and there are two original power supply methods: first, the FWD battery is continuously charged by the vehicle's generator; Secondly, use 220V room voltage to charge the FWD battery;
5.4 Equipped with mechanical locking function;
5.5 has the function of emergency lifting the load-bearing plate off the road surface in case of system paralysis, so as to put the FWD in transportation mode;
5.6 Equipped with manual operation function;
5.7 Monitoring function for the working status of the bearing plate;
5.8 DMI measurement point position and distance measurement function;

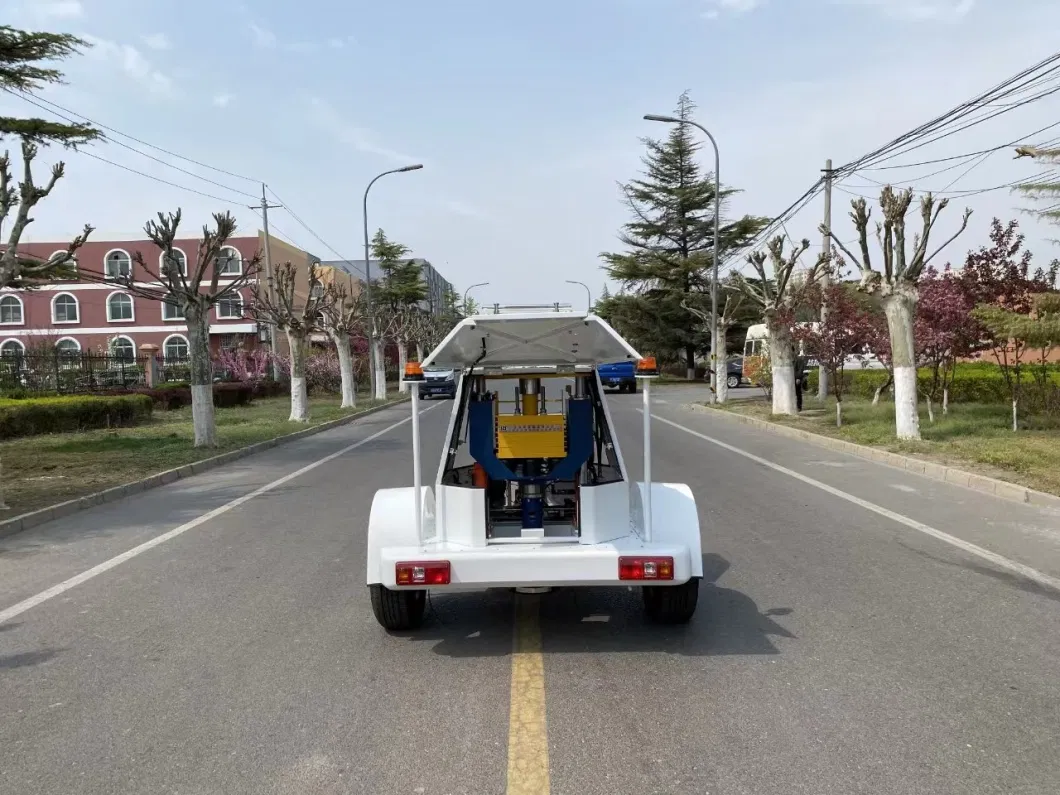

5.9 Installed at the rear of the FWD trailer, with one warning light on the left and one on the right, to increase driving safety;
5.10 Software Features

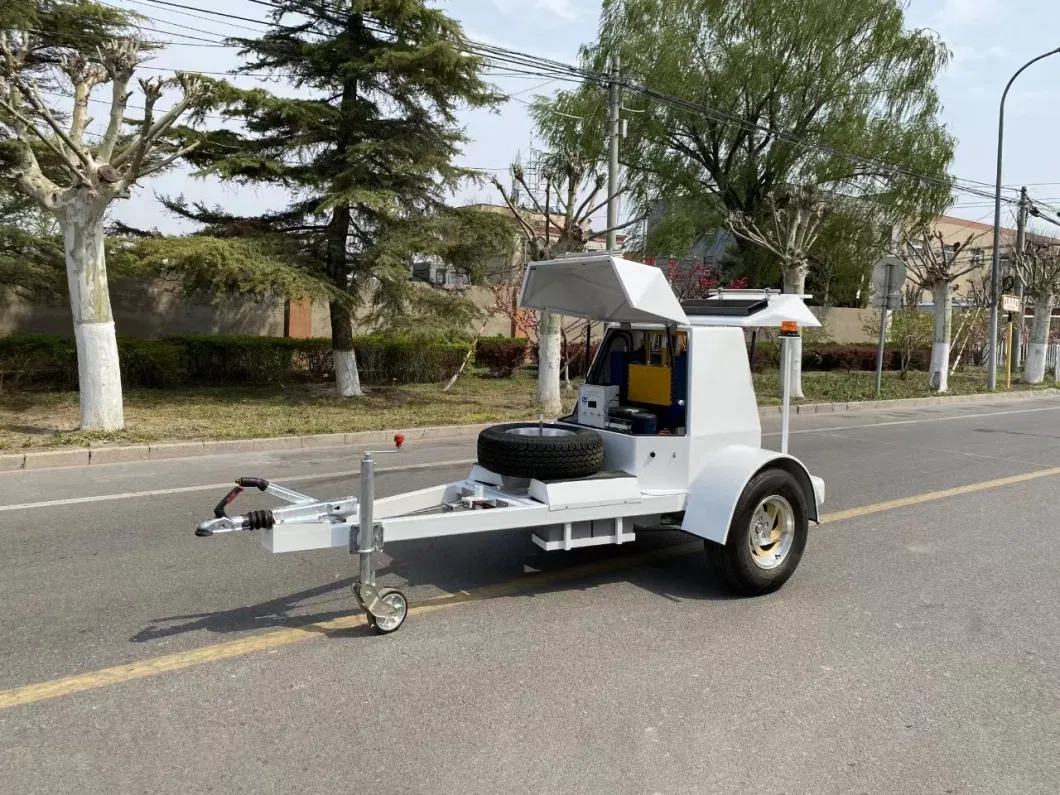

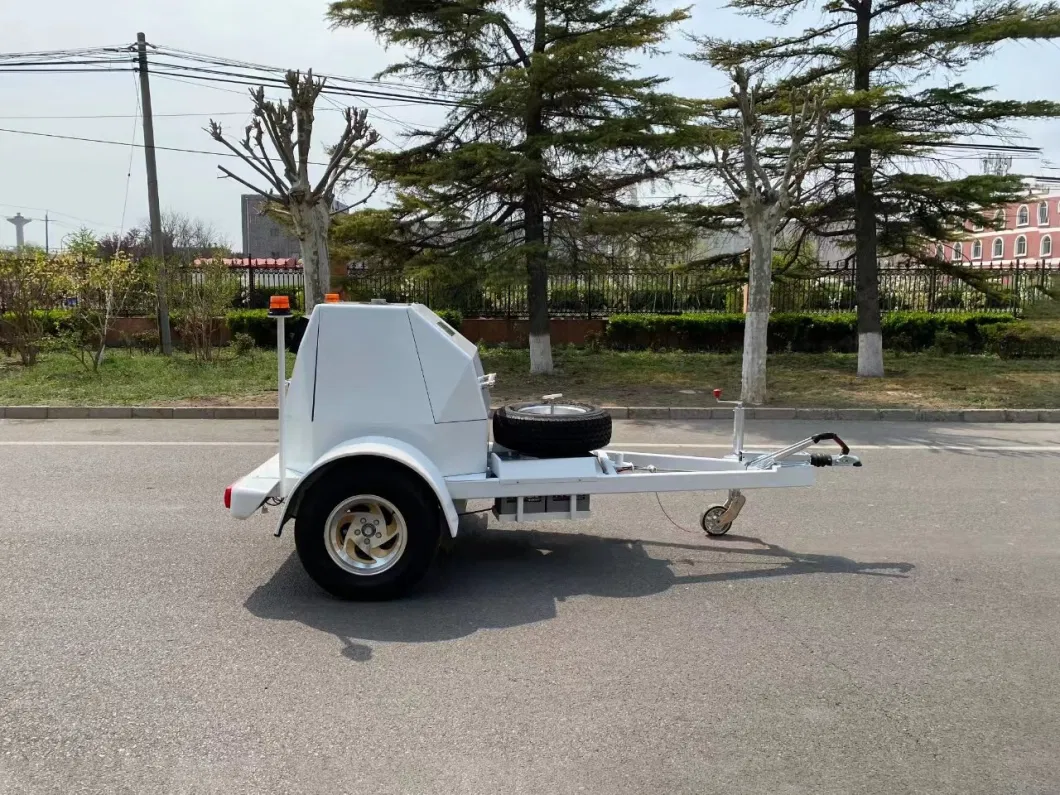

Detailed Photos
Product Parameters
|
item
|
value
|
|
Warranty
|
1 year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
China
|
|
|
Shaanxi
|
|
Brand Name
|
Zealchon
|
|
Model Number
|
JGFWD-200 |
|
Power
|
Electronic
|
|
Rated impact load
|
250 KN
|
|
hammer Weight
|
50 kn
|
|
displacement sensor type
|
geophone speed sensor
|
|
Warranty
|
1 Year
|
|
Certificate
|
ISO
|
|
Power supply
|
220V 50Hz
|
|
the pulse load duration
|
15-20ms
|
|
Product name
|
portable Drop Weight Tester
|
|
Application
|
Soil
|
Packaging & Shipping
Company Profile
Xi 'an Zealchon electronic technology co., LTD, located in new technology industry development zone in Xi'an, an ancient city in China. It covers an area of 7500 square meters of building area. Zealchen specialize in two aspects: one is civil engineering research and experimental apparatus; another is the semiconductor laser research and development. On one hand, currently based on civil experimental instrument research, the research team is founded by the personnel who come from Chang 'an university, Xi 'an polytechnic university, Xi 'an petroleum university, which has the top technology in this expertise. In addition, its research and development has accomplished a series of leading domestic and international standards, first-class technology of asphalt and asphalt mixture, road, bridge deck, geotechnical, structural testing instruments, even more, some of the products fill the blank of similar equipment at home and abroad, won national, ministerial, provincial awards. On-site manufacturing allows us to customize our products quickly and efficiently to meet specialized customer requests. Our technical support team, marketing, and web development teams make their homes in china as well, and are dedicated to providing comprehensive customer support and services.
After Sales Service

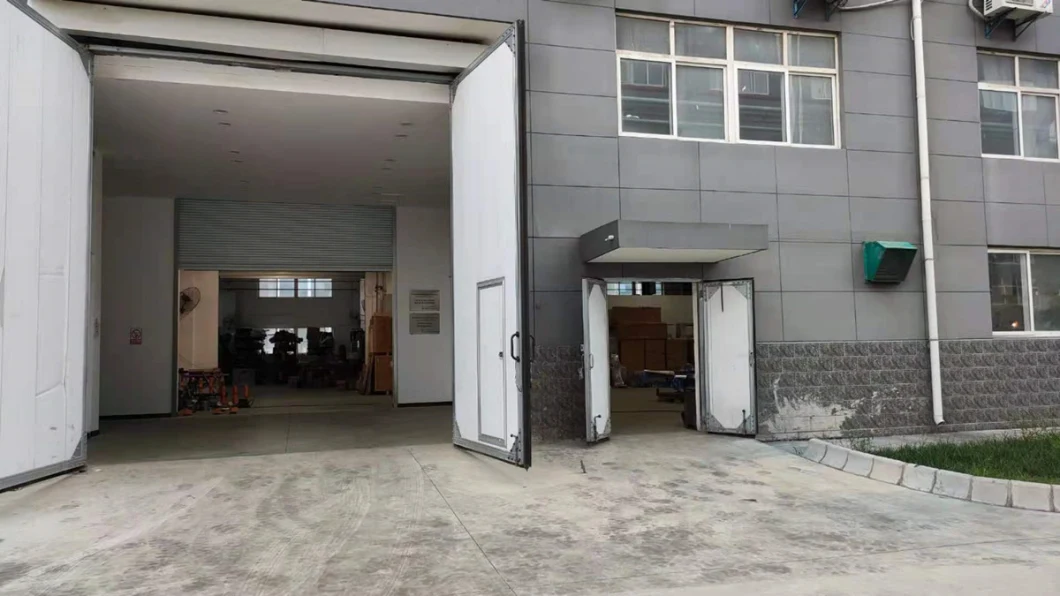

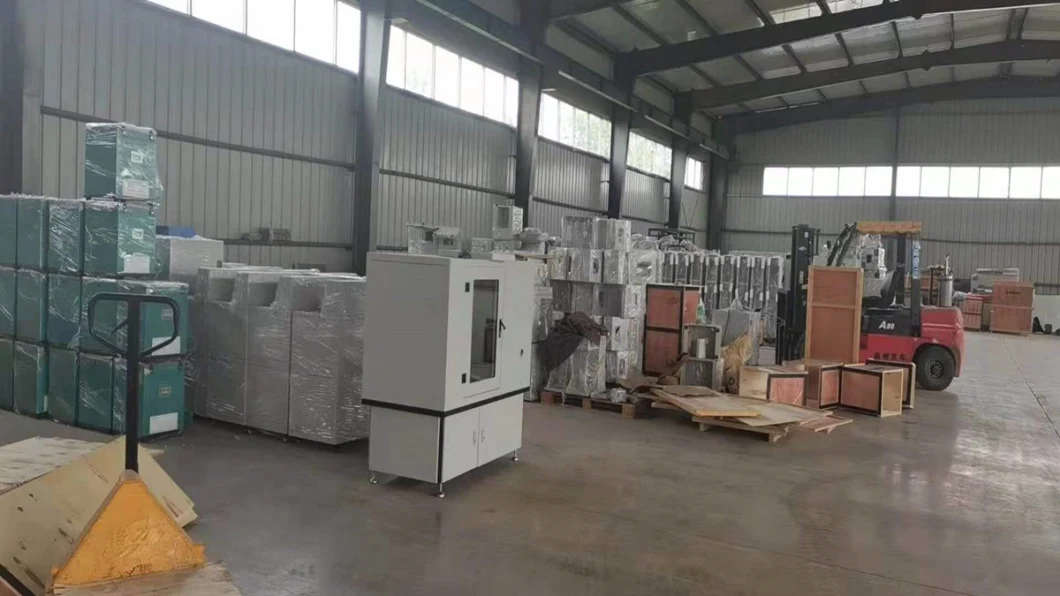

Factory visiting
